| Product Catalog -> WNL Wire Feed Unit ->> 4 Rollers wire feed unit
 |
4 Rollers driven wire feed unit |
|
| Technical Parameters |
|
|
| Bracket |
4 Rollers |
| Diameter of rollers |
40mm |
|
| Wire diameter |
0.8/1.0/1.2/1.4/1.6 mm |
|
| Pressure Unit |
double,off centered,front release |
|
| optional torch |
Panasonic,OTC,Euro |
|
| optional encoder |
60plus/r£¬120 plus/r£¬AB channel |
|
| Wire feeding direction |
right to left,left to right |
|
| Wire Feed Speed |
1.5-30m/min |
|
| |
|
|
| |
|
 |
 |
 |
Euro Torch Interface |
|
Panasonic Torch Interface
|

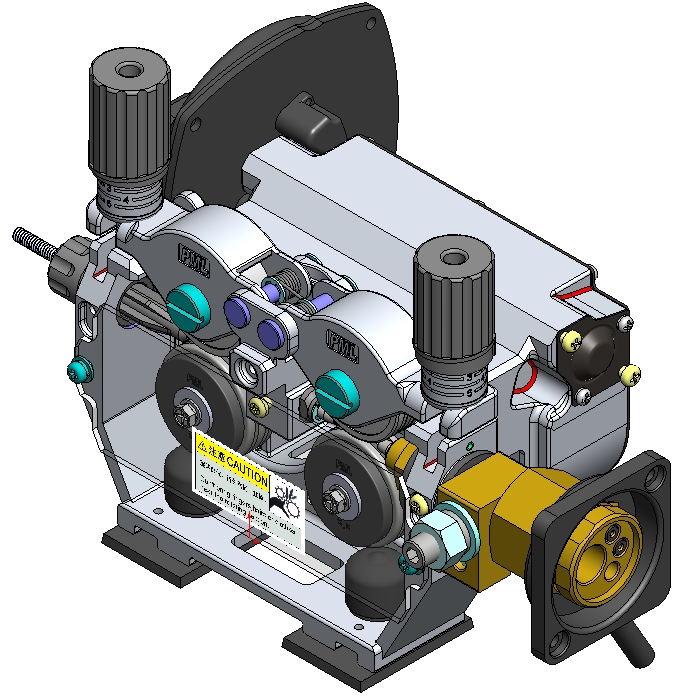

Model£ºFWF-840-A3 |

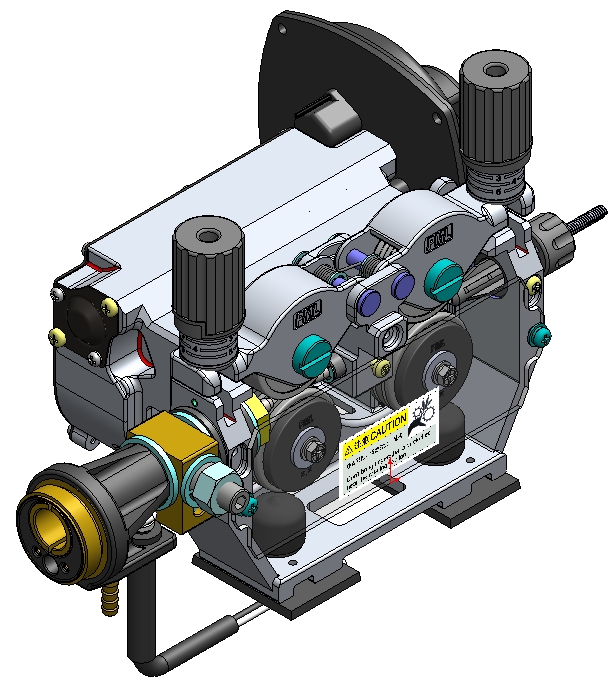

Model£ºFWF-840--A2 |

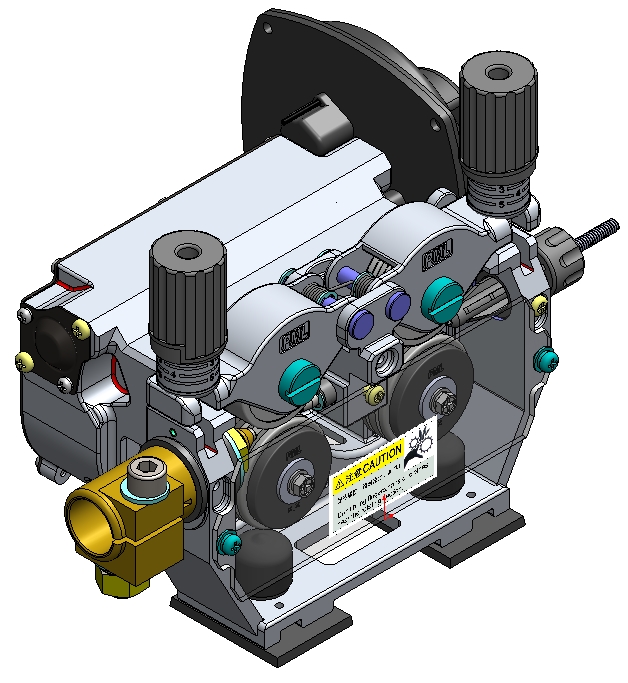

Model£ºFWF-840-A1 |
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| Outline drawing, all dimensions in mm£º |
|
 |
| For more information,please contact with us. |
|
|
|
